Paketsammlung PCB

Paketsammlung PCB

Turn broken electronics into a collection, and learn every component package by hand.

CHF 5.90
CHF 5.90
Sale Ausverkauft
Free Shipping Available.

Skills you'll build

SolderingSMDAdvanced
Vollständige Details anzeigen

Fähigkeiten, die Sie aufbauen

Soldering
SMD Components
Advanced

Lieferumfang

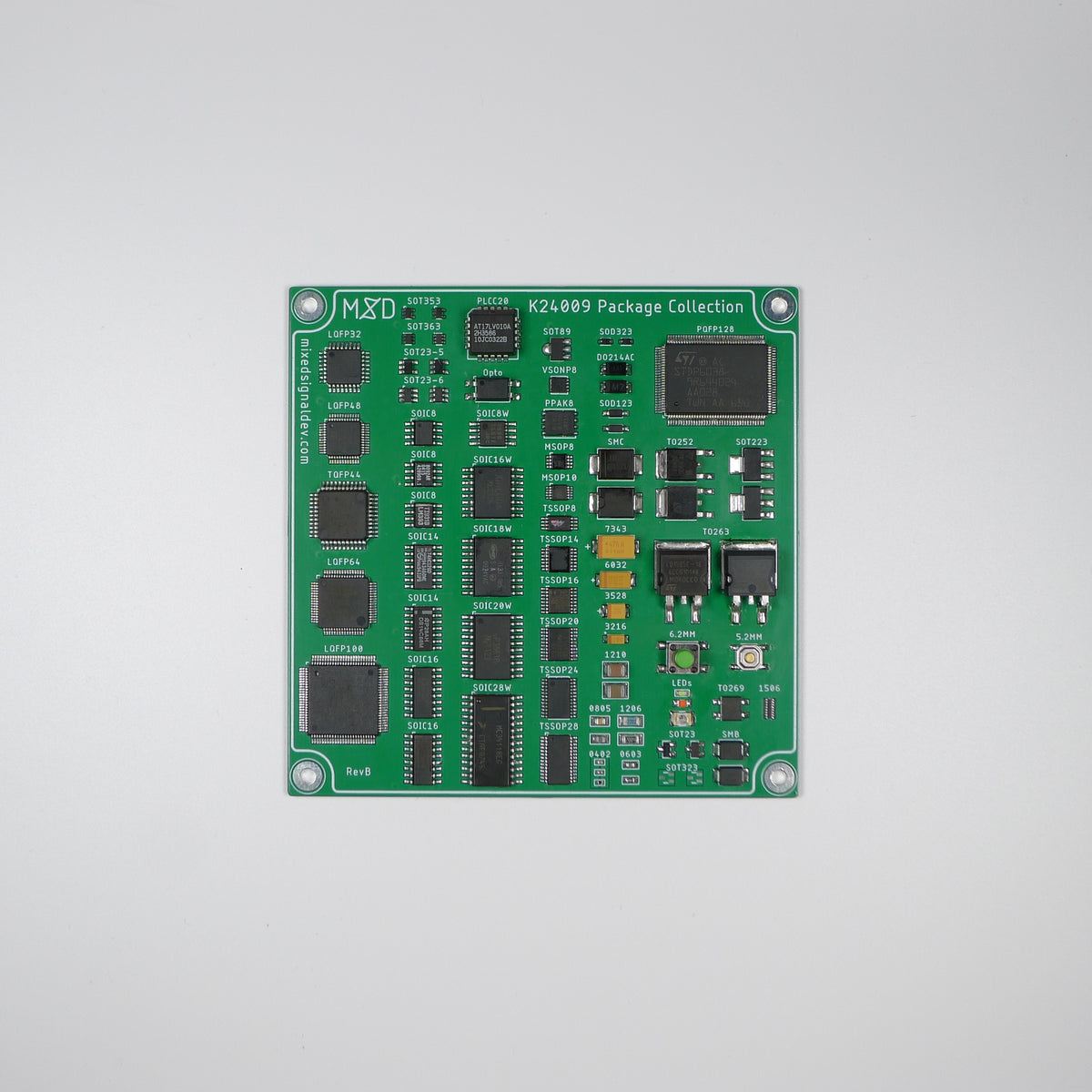

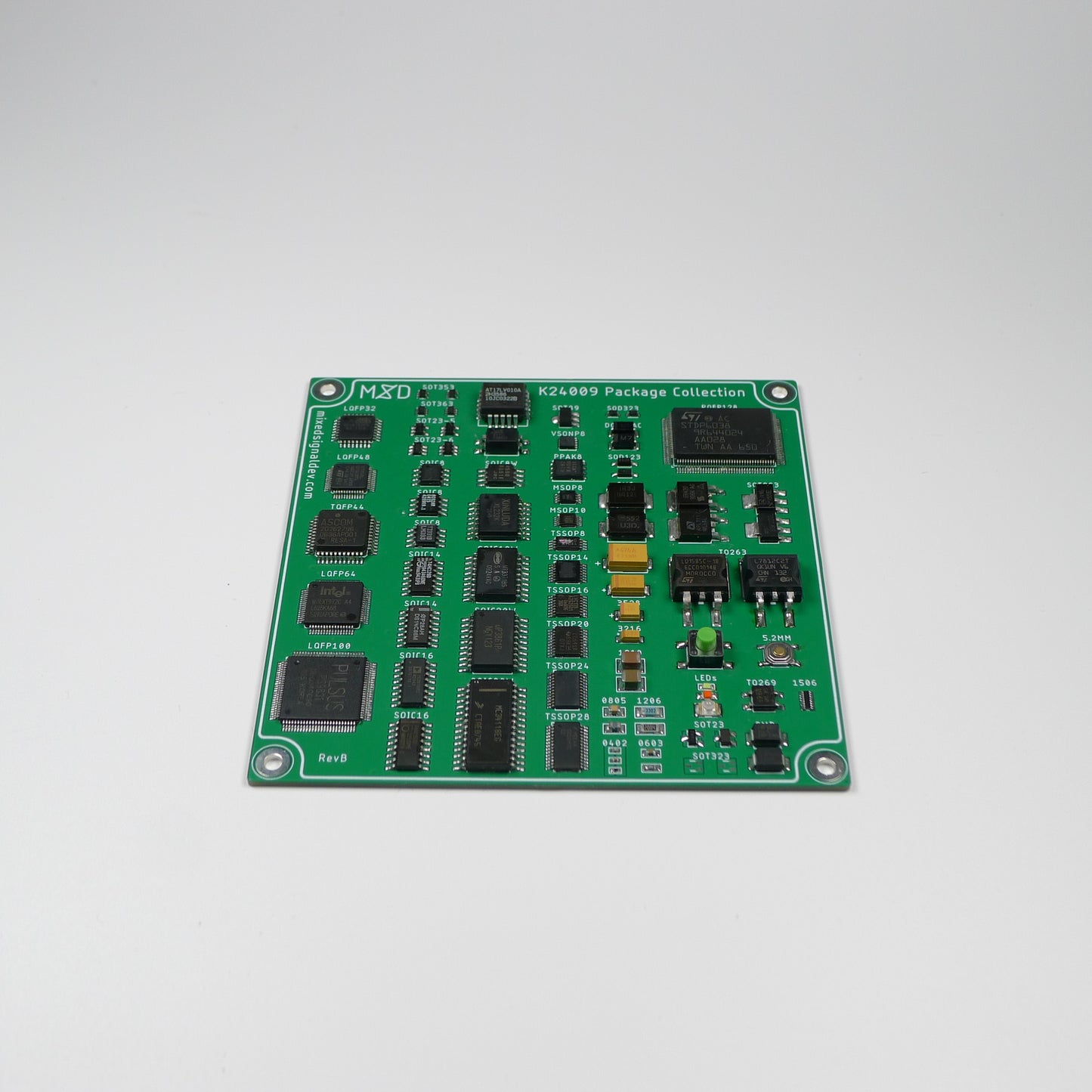

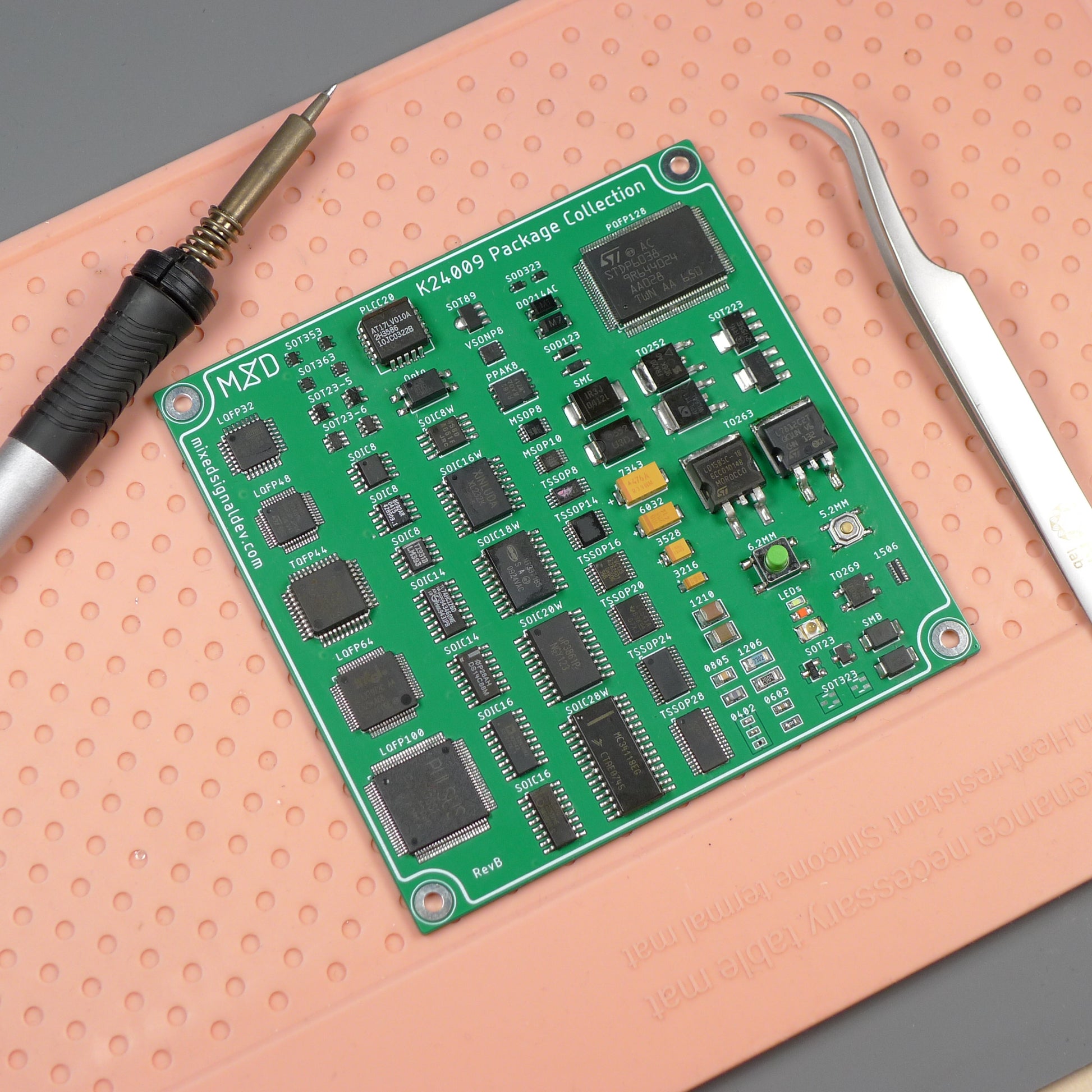

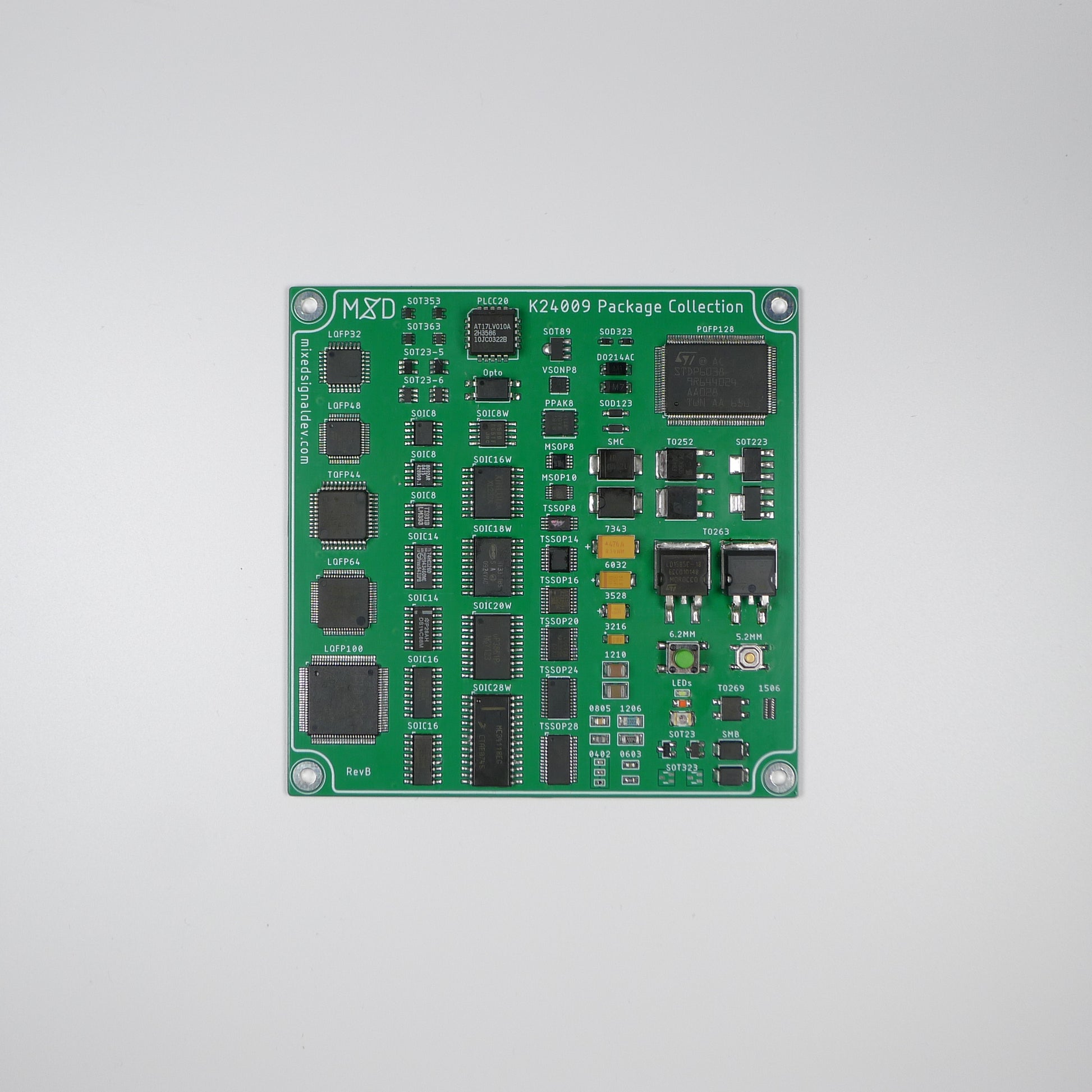

  • Package Collection PCB (unpopulated)
  • Silkscreened package labels for every footprint
Über dieses Kit

Every dead gadget is a treasure chest. The Package Collection PCB turns "opening things up" into a game — a single board covered in dozens of SMD component footprints, from the everyday to the genuinely rare, waiting to be filled.

The board ships empty on purpose. The point isn't to buy the parts — it's to harvest them. Crack open that broken printer, the old motherboard, the dead power brick, desolder the package you're missing, and add it to the collection. Like trading cards for electronics: you need to collect them all.

Why makers love it

  • Turns e-waste into a scavenger hunt — a reason to open every device
  • Learn to identify SMD component packages by hand, from the common to the genuinely exotic
  • Real desoldering and rework practice on real salvaged parts
  • A conversation piece — mount it on the wall when it's full

How it works

  1. Find a broken or unwanted electronic device.
  2. Spot an SMD component package you don't have yet.
  3. Desolder it carefully and mount it in its labelled spot on the board.
  4. Repeat until the collection is complete.
Das lernen Sie4 Themen
  • Identify SMD packages on sight
  • Desolder cleanly without lifting pads
  • Use hot air on fine-pitch parts
  • Assess salvaged components for reuse
Vorkenntnisse & NiveauAll levels

Niveau: All levels

  • Curiosity and a device worth taking apart
  • Basic familiarity with a soldering iron

Recommended: a desoldering tool or hot-air rework station (not included)

Technische Daten4 Angaben
Board Unpopulated collector PCB
Footprints SMD packages, 0402 and up
Components Not included, collect them yourself
Best paired with A desoldering iron or hot-air station
Häufige Fragen3 Fragen

Does it come with components?

No, the board ships empty on purpose. You collect the parts yourself by salvaging them from old electronics.

What tools do I need?

A desoldering iron or a hot-air rework station, plus basic rework supplies like flux and tweezers.

Are the footprints labelled?

Yes, every footprint is silkscreened with its package name so you know exactly what you're hunting for.
