Soldering Practice

Soldering Practice

This kit teaches you through-hole and SMD soldering across professional component sizes, from 0201 to 1206. You get the board, every component, and a 34-page engineering guide.

CHF 29.90
CHF 29.90
Sale Ausverkauft
Free Shipping Available.

Skills you'll build

SolderingSMDCircuit TheoryBeginner
Vollständige Details anzeigen

Skills you'll build

Soldering
SMD Components
Circuit Theory
Beginner Friendly

What's included

  • PCB
  • All electronic components — resistors, capacitors, LEDs and more
  • USB-C cable
  • Assembly guide
  • Lab Journal
About this kit
Einsteigerboard.
Beim Soldering Tutorial Board handelt es sich um ein Einsteigerboard, für diejenigen, die in die erstaunliche Welt der Elektronik eintauchen möchten. Es enthält grundlegende integrierte Schaltkreise (ICs), die dafür sorgen, dass die LEDs auf der Platine sich im kreis blinken... wenn es richtig gelötet wird.

Üben Sie das Löten oberflächenmontierter Bauteile!

Dieses Kit enthält alle für den Zusammenbau erforderlichen Komponenten sowie eine hochwertige Leiterplatte (PCB). Dieses Kit enthält ausserdem die erforderliche Dokumentation, um dieses Board aufbauen, testen und verstehen zu können.






What you'll learn
  • Through-hole (THD) soldering on professional components
  • SMD soldering techniques on real component packages
  • How to identify and fix common soldering defects — cold joints, bridges, tombstoning
  • How capacitors, resistors, and LEDs function in a real circuit
  • How to read and understand a PCB assembly guide
  • Basic circuit debugging using visual inspection
  • How to use a multimeter to verify circuit operation
Prerequisites & difficulty
Beginner — no prior soldering experience required
  • Basics of Ohm's Law
  • The role of capacitors, inductors and resistors in a circuit
  • Fundamentals of digital logic (HIGH and LOW states, basic logic gates)
    • Note: Required tools: soldering iron and USB-C cable. Recommended: multimeter, oscilloscope.
    Technical specifications
    Component types THD + SMD
    Power USB-C
    Output LED array (visual confirmation)
    Components Resistors, capacitors, LEDs, SMD packages
    FAQ

    Do I need any prior soldering experience?

    No. This kit is designed for complete beginners — no previous experience required.

    What tools do I need?

    A soldering iron and a USB-C cable. A multimeter and oscilloscope are recommended but not required.

    What SMD package sizes are included?

    The kit includes a range of standard SMD packages alongside through-hole components, covering the most common sizes you'll encounter in real circuits.

    How do I know if I've soldered correctly?

    Power the board via USB-C when assembled. If the LEDs function correctly, your joints are good. A dark or intermittent LED points you to the problem.

    Preview

    Browse the documentation

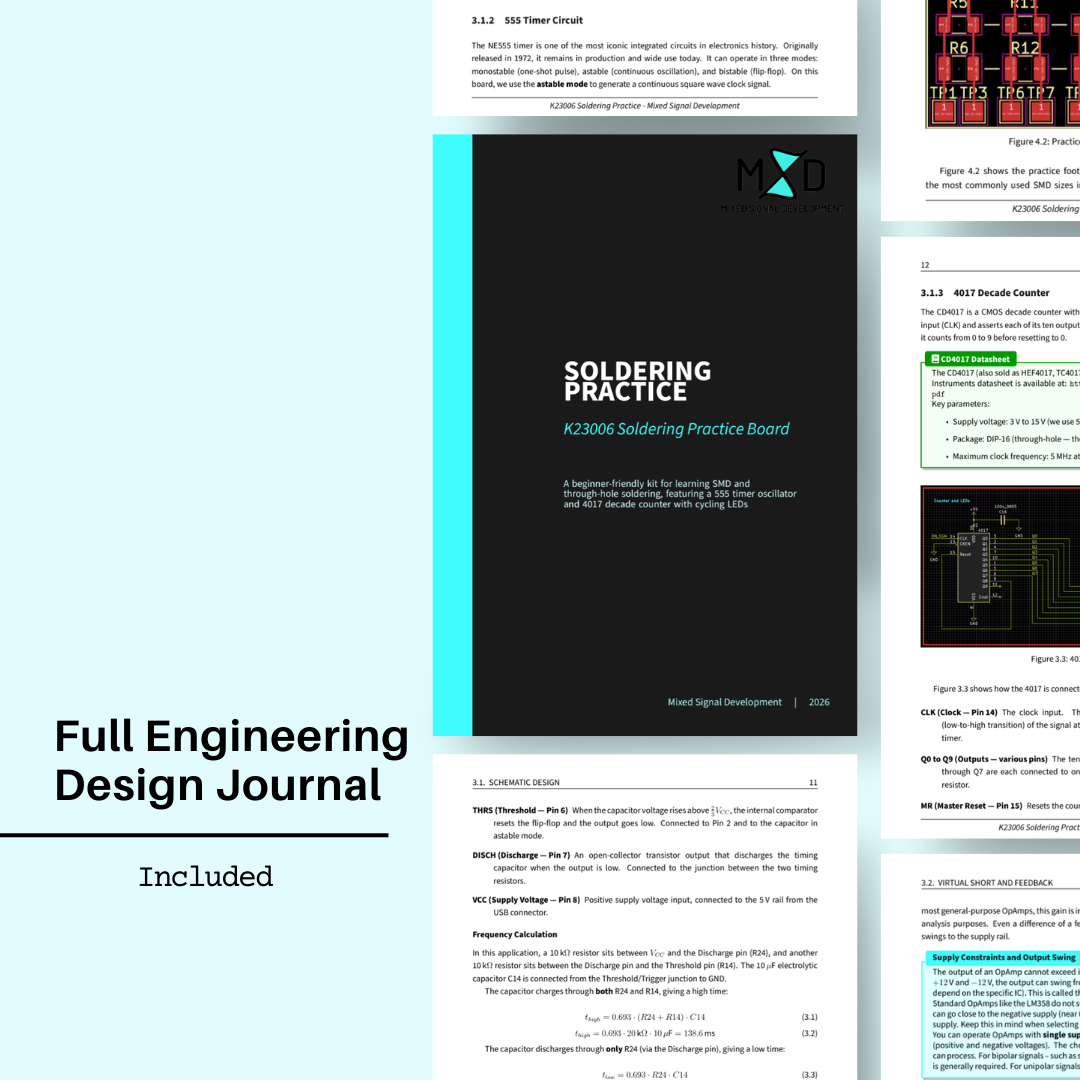

    Every kit includes a full engineering design guide. Here's a preview.
