OpAmp Template Educational Kit
OpAmp Template Educational Kit
This kit teaches you operational amplifier fundamentals — voltage followers, inverting and non-inverting amplifiers, integrators, differentiators, and active filters. You get 8 PCBs, all components, a 41-page engineering guide and simulation ready files for LTSpice.
Skills you'll build
Couldn't load pickup availability
Skills you'll build
What's included
- 2 × PCB panels (4 PCBs each — 8 boards total)
- LM358 dual op-amp ICs
- LM321 single op-amp ICs
- Resistor and capacitor assortment
- Documentation — circuit theory guide and experiment examples
About this kit

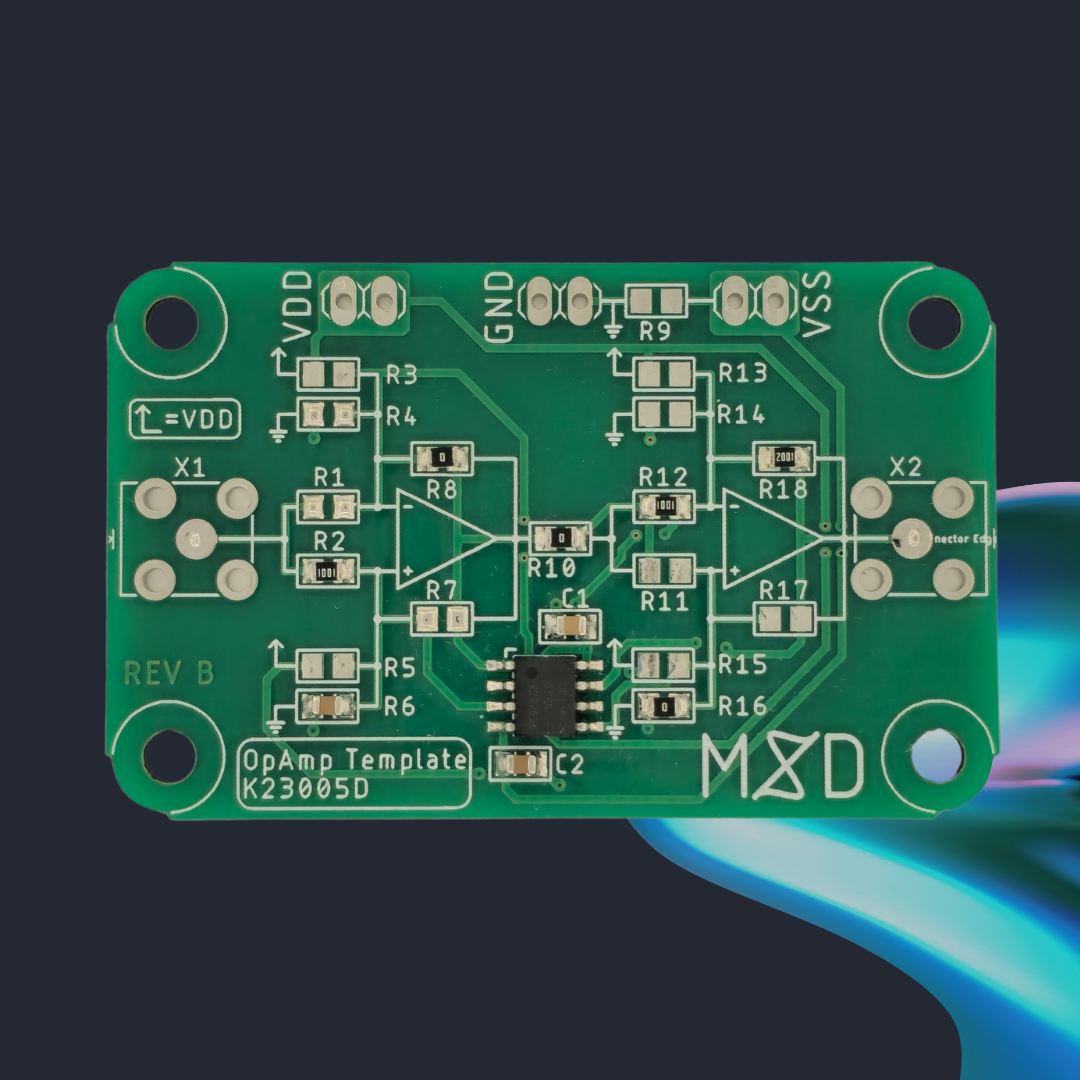

The OpAmp Experimentation Kit is the hands-on way to learn operational amplifiers. Instead of a fixed circuit, you get eight individual PCBs — two breakaway panels of four — each one a clean template for building any op-amp circuit you can design. The kit includes LM358 dual op-amps and LM321 single op-amps along with a starter pack of resistors and capacitors to get you experimenting immediately.
Build comparators, inverting and non-inverting amplifiers, integrators, filters, oscillators — the open PCB layout gets out of the way and lets you focus entirely on the analog electronics.
What you'll learn
- How operational amplifiers work — gain, virtual ground, feedback, and output swing
- Comparator circuits — comparing two voltages and switching an output
- Inverting and non-inverting amplifier configurations
- Integrators and differentiators — analog computation using op-amps
- Active low-pass and high-pass filter design
- Oscillator topologies — Wien-bridge and other self-sustaining circuits
- How to design from a circuit schematic to a working PCB
- How to iterate and experiment by building multiple circuits on separate boards
Prerequisites & difficulty
Technical specifications
FAQ
Can I reuse the PCBs?
Yes. The open layout is designed for repeated experimentation — unsolder the components, clean the pads, and build a new circuit on the same board.
Do I need a specific power supply?
The LM358 and LM321 work with a dual-rail supply (±5V to ±15V) or single-supply (3V to 32V). A ±12V bench supply is a common choice.
Is this suitable for beginners?
Basic circuit theory and Ohm's Law are required. If you're new to electronics, the Fundamental Skills Bundle is a better starting point.
Browse the documentation
Every kit includes a full engineering design guide. Here's a preview.
Before you buy
Not sure what arrives in the box?
Every kit ships with the PCB, every component, the assembly guide and the full engineering design guide. See exactly what you get before you order.
